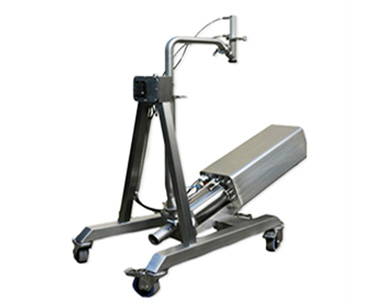

Dimension LLB138

Steck has developed its Dimension range of depositors based upon the feedback from its customers. The Dimension range is precision engineered, with many unique features which eliminate the old issues of reliability, accuracy, performance and safety. The Low Level can be configured to suit any application. The new Low Level "B" model offers extended access under the frame for additional clearance for hygiene procedures.

  • Deli, Hot Mash, Ready Meals.
Contact Us

The Dimension range is precision engineered, with many unique features which eliminate the old issues of reliability, accuracy, performance and safety. To this end Steck’s new Dimension range has addressed the issues with features that include:

Air Circuit: Steck pilot less air circuit (including safety circuit)
Power: Reduced power consumption's
Energy: Zero Stored Energy in tripped mode
Engine Action: Forward
Frame Work: Low Level, fixed height, telescopic outlet pipe work
Positive Drive: Patented ‘Steck-Link’ valve drive system
Product Feed: Hopper, Suction or Transfer Pump
Reduced Maintenance: Fully modular ‘cassetted’ engine design for ease of maintenance
Construction: Robust construction
Protection: Sealed main air cylinder, Spill back space
IP65: Fully IP65 sealed pneumatics for protection from the cleaning environment
Heads: 1 Head
Nozzles: Full Selection of Nozzles
Weight Control: Digital or Analogue

Maximum supply pressure: 10 Bar
Minimum supply pressure: 4 Bar
Power cylinder bore: 80 mm
Power cylinder stroke (max): 150mm
Power cylinder stroke (min): 10mm
Stroke repeatability: 0.03%
Maximum depositing energy: 450 J (6 Bar supply)
Maximum depositing force: 3015N (6 Bar supply)
Maximum speed at full stroke: 70 (strokes/min)
Maximum speed at min stroke: 240 (stokes/min)
SPR (Suction Pressure Regulation: 0-4 Bar
Maximum air consumption: 14 cfm
Typical air consumption: 6.5 cfm
