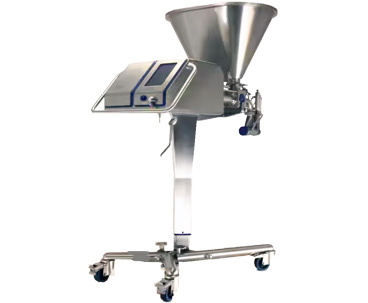

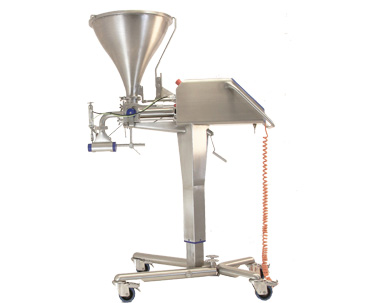

SPD138 - Servo Pneumatic Depositor

Key Features:

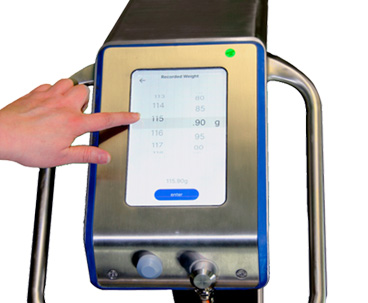

Servo-Controlled Accuracy: Our all new integrated 2K resolution 9" touchscreen HMI runs "SP-Ace", the new standard AI-ready depositor interface solution from Steck. This gives user access to all depositor adjustments via a convenient and intuitive app, enabling ultra-precise portion control with repeatability down to the sub-gram, minimizing waste and maximising yield.

SPD 138 Performance: Combines the high power, reliability, and low-cost maintenance of Steck's pneumatic cassette engine concept, with precision real-time control afforded by closed-loop PID control.

Steck's High Precision Wet End Components: for unmatched accuracy and performance.

WiFi connectivity: to Portal, Mobile Apps and Factory Automation.

Dual Channel Safety: Ensures safe operation for users, combined with 'pop-up' display information.

I/O Capabilities : Communicate easily with other machinery. Add-on modules offer simple, flexible integration with 3rd party machines.

Programmable Recipes: Steck's intuitive touchscreen recipe interface stores multiple product settings for instant recall and recipe flexibility. Steck's Intelligent system monitoring can report unusual operation conditions, such as product inconsistency.

RES2 Technology: Oversee fleet performance through our dashboard. RES2 (Record Every Setting Every Stroke) provides the ability of all Steck SPD machines to send data to Steck's central database. It means that every single deposit the machine ever makes is (optionally) recorded in detail, and this data can be remotely accessed by users on the portal.

MMI (Modulated Metering in): Replaces traditional metering, this means only the minimum quantity of air required is used to move the cylinder piston at the desired speed. And for extra economy, the SPD is '4 Bar Ready' and will operate on any clean air supply from 4 to 10 bar without performance changes.

Variable Backstop: Actively adjusts the cylinder length to the minimum required, eliminating dead space behind the backstop and ensuring maximum efficiency and responsiveness.

Auto-Cycle Feature: Prime and empty at the touch of a button. Our engines quickly adjust to maximum operation to provide the fastest setting to aid cleaning and priming.

Air Consumption Reduction: Steck's range of pneumatic depositors currently represent the best in class for energy consumption, the intelligent control of the SPC Engine Control Module delivers a further 12% reduction.

Tool-Free Changeovers: Designed for quick, hygienic product changeovers with minimal downtime-perfect for high-mix production environments.

Hygienic Design: Built to meet the highest food safety standards with easy-to-clean, stainless-steel construction and wash-down capability. Electronic internals are neatly packaged into one IP69 HMI unit, and one IP69 potted unit integrated directly into the engine, connected together by a single m12 cable. Our reimagined, organically designed depositor stand minimises surface area for standing water and dirt to hold to. Not forgetting Steck's legendary fully enclosed engine case.

Multi-Nozzle Configurations: Customisable nozzle arrays support single-lane or multi-lane production-ideal for bakeries, ready meals, pizzas and sandwiches.

Utilising Length Sense technology for Motion Tracking: When using Length Sense, every food items length is recorded, and deposit adjusted accordingly in real-time.
