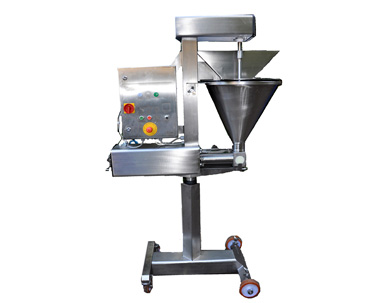

Dimension SA - Special Applications

Enhancing the Dimension, Steck can offer a range of special purpose machinery to suit many applications. These can include Steck's unique sequential machinery for party food's and ready meal tray applications. Flip flop twin depositing applications for twin lane depositing and the RCD (Rotary Cup Depositor) for large chunk products, including apple pies and the VFP-150 Vacuum Fill Pump for non-particulate sauces.

Steck's expertise in depositing machinery ensures we have or will develop the right solution for your projects.

  • All Special Applications.
Contact Us

The Dimension range is precision engineered, with many unique features which eliminate the old issues of reliability, accuracy, performance and safety. To this end Steck’s new Dimension range has addressed the issues with features that include:

Air Circuit: Steck pilot less air circuit (including safety circuit)
Power: Reduced power consumption's
Energy: Zero Stored Energy in tripped mode
Engine Action: Forward
Frame Work: As required
Positive Drive: Patented ‘Steck-Link’ valve drive system
Product Feed: Hopper, Suction or Transfer Pump
Reduced Maintenance: Fully modular ‘cassetted’ engine design for ease of maintenance
Construction: Robust construction
Protection: Sealed main air cylinder, Spill back space
IP65: Fully IP65 sealed pneumatics for protection from the cleaning environment
Heads: As Required
Nozzles: Full range for any application
Weight Control: Digital or Analogue

Maximum supply pressure: 10 Bar
Minimum supply pressure: 4 Bar
Power cylinder bore: 80 mm
Power cylinder stroke (max): 150mm
Power cylinder stroke (min): 10mm
Stroke repeatability: 0.03%
Maximum depositing energy: 450 J (6 Bar supply)
Maximum depositing force: 3015N (6 Bar supply)
Maximum speed at full stroke: 70 (strokes/min)
Maximum speed at min stroke: 240 (stokes/min)
SPR (Suction Pressure Regulation: 0-4 Bar
Maximum air consumption: 14 cfm
Typical air consumption: 6.5 cfm
